DR Retrofit X-Ray Solutions
Complete RETRO-FIT PODIATRY DIGITAL X-RAY SYSTEMS
Upgrade your existing X-ray equipment with 20/20 Imaging’s PDR retrofit solutions, designed to bring the power of digital radiography to your current podiatry setup. Rather than replacing your entire system, our retrofit packages integrate seamlessly with your existing high-frequency X-ray, providing a cost-effective path to modern digital imaging.
Choose from four premium DR panel options to match your clinical workflow, all delivering high-resolution images with fast acquisition times. Each retrofit solution is powered by our all-in-one Symmetry-Sync software, which combines acquisition, viewing, and PACS storage in a single, intuitive interface. The system also includes our advanced Podiatry Toolset, offering specialized features for precise foot and ankle imaging.
With on-site installation and training included, your practice can make a smooth and confident transition to digital with minimal downtime. 20/20 Imaging’s retrofit solutions are the perfect way to modernize your practice, improve diagnostic accuracy, and streamline your podiatric workflow—all while maximizing your existing investment.
Meet the system:
PXS-710D Retrofit Base
Both Wireless & Tethered DR Compatible, all options qualify for ADA tax credit
- PXS710D Retrofit Base Upgrade
- Serial Number Ranges
- Gen1: SNs 100 - 439, you have our first-generation base. Upgrade to our latest Bi-Directional Gen x-ray base and new DR technology
- Gen2: SNs 501 - 804, you have a second-generation base. Upgrade to a current-Gen flat panel DR
DR Panel Choices
Designed to modernize existing equipment, 20/20 Imaging’s Cesium DR panels bring digital clarity and efficiency to retrofit systems such as the X-Cel X-ray, or a PXS710-D base upgrade. Every panel ships with a custom-fit holder to ensure simple installation and stable alignment, making the upgrade process seamless. Practices can choose from a range of panel sizes in both wireless and tethered configurations, all built to deliver sharp images at lower dose while extending the life of their current X-ray system.
- 5 Year Warranty
- Cesium Scintillator
- Active Image Area: 13.75"x16.75"
- Wireless connectivity
- 150micron | 3.4lp/mm
- AD conv. 16-bit
- Inc. 2 batteries
WIRELESS 14x17 UNIVERSAL DR PANEL
- 5 Year Warranty
- Cesium Scintillator
- Active Image Area: 10"x13"
- Wireless connectivity
- 100micron | 5lp/mm
- AD conv. 16-bit
- Inc. 2 batteries
- Extended battery life
WIRELESS 10x13 UNIVERSAL DR PANEL
- 3 Year Warranty
- Cesium Scintillator
- Active Image Area: 9.34"x11.8"
- Tethered connectivity
- 125micron | 4lp/mm
- AD conv. 16-bit
UNIVERSAL DR 1012V PANEL
- 3 Year Warranty
- Cesium Scintillator
- Active Image Area: 9.6"x11.6"
- Wireless connectivity
- 100micron | 5lp/mm
- AD conv. 16-bit
- 7-yr lithium-ion capacitor warranty
WIRELESS 10x12 MOMENTUM DR Panel
14x17 Universal DR Wireless Panel (Cesium Flatpanel)
When coverage is the priority, the 14×17 wireless panel steps up with 50% more active area* than 10×12 models. This larger field reduces the need for multiple exposures, making it a strong fit for imaging larger anatomy. With direct-deposition CsI and solid wireless performance, it balances breadth with efficiency.
10x13 Universal DR Wireless Panel (Cesium Flatpanel)
Rounding out the lineup, the 1013X wireless panel fills the middle ground. With its true 10×13 active area, it offers more coverage than the compact 10×12 without the size of a 14×17. Its 100-micron resolution and ergonomic holder make it easy to maneuver while still producing crisp, detailed studies — a smart option for practices that need flexibility across patient types.
1012V Universal DR Tethered Panel (Cesium Flatpanel)
For sites that prefer the certainty of a wired connection, the 1012V tethered panel offers a compact, cassette-sized 10×12 format. Its hard-wired reliability makes it ideal for small exam rooms or offices where wireless use isn’t practical, while still delivering sharp cesium image quality in a familiar footprint.
1012 Momentum Wireless Panel (Cesium Flatpanel)
The Momentum DR wireless panel is built for clinics that can’t afford downtime. Its unique capacitor power design means there are no batteries to swap or charge, so it’s always ready to go. Combined with REALISM™ image processing, it delivers superior contrast and helps distinguish overlapping structures — the choice for busy practices where speed and diagnostic confidence matter most.

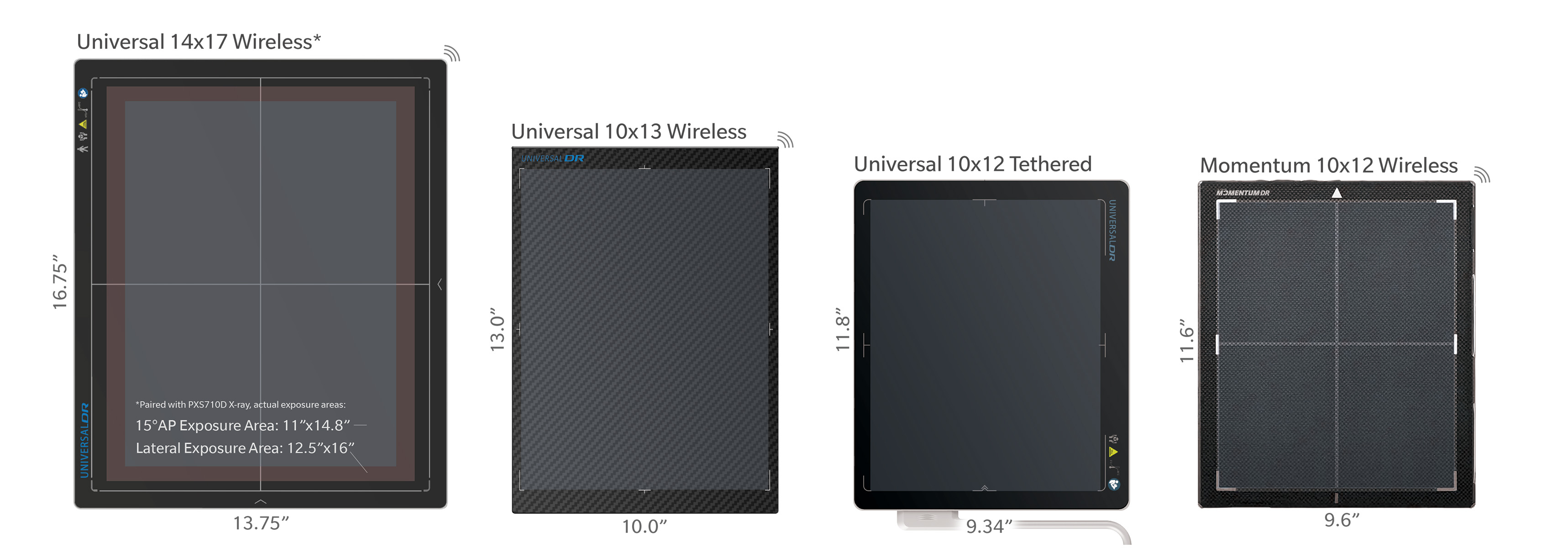

Compare Panel Active Areas:
Acquisition Interface
Acquire Software
- Preset x-ray exams (see below)
- Easy-to-Use
Superior Image Quality
- Sharper images, optimized clarity
- Quick view selection
- Customizable image sharpness level
- Auto Contrast upon processing
- Image auto-shutter/crop
- Images auto-save during acquisition to Server for immediate access in exam rooms
PC Hardware
Business Class Components†
Small Form Factor All-in-One PC
- Intel Processor, 32GB RAM
- Dual 2TB NVMe (Mirrored) Storage
- Wi-Fi 6E + Dual Ethernet
24" LED IPS 2MP Touchscreen Monitor
- 10-point Touchscreen
- High Quality Display for optimized viewing
- VESA Wall-mount compatible
Symmetry-Sync Software
↑ Multi-functional Studylist
- Cybersecurity features
- Customizable Workflow & Interface
- Full PACS Functionalities included
- View from anywhere, anytime*
← Diagnostic Client DICOM Image Viewer
- User friendly & Easy to Use
- Full Clinical Toolset included
- Customizable toolbox for your favorite tools
Zero-footprint Web DICOM Image Viewer
- Utilize any web browser
- Requires no installation, runs through browser
- Customizable tools & layouts
Included Podiatric Tool-Set
- Hallux Interphalangeus
- Hallux Abductus
- First Intermetatarsal
- P.A.S.A.
- D.A.S.A.
- Metatarsus Adductus
- Total Adductory Angle
- Metatarsal Parabola
- Metatarsal Protrusion
- Talo-Calcaneal
Pre-configured Exams
- Time saving Pre-configured exams
- Fully customizable
- Reduces technician errors
- Fast-switching to all views
- Add & remove views on the fly
On-Site Install & Training
- System setup by professional 20/20 certified installer
- Full training for both doctors and x-ray techs
- Monitoring by tech to ensure entire trained staff is completely comfortable
Warranty
- DR Panels: 3-5 year warranty
- PC Components: 3year full on-site incl. parts†††
- Experienced live technician support after installation
*World-wide access includes web license, however a certified IT personnel must configure Server PC at expense of customer
† Lenovo & Dell brand and PC components/models/specifications may differ and are subject to change. Lenovo logos and photos copyright Lenovo. Dell logos and photos copyright Dell.
