Straight-Arm w/ Dynamic Digital Radiography
High frequency Straight-Arm x-ray Unit with high definition flat panel DR—
capable of both dynamic & static imaging
Unlock the power of motion x-ray in your chiropractic practice with 20/20 Imaging’s DDR system.
WHAT IS DYNAMIC DIGITAL RADIOGRAPHY (DDR)?
DDR is innovative radiographic technique that provides diagnostic-quality digital views of anatomical structures in motion at a lower dose than fluoroscopy. The resulting cine loop presents a diagnostic-quality view of your patients’ spine and musculoskeletal conditions by presenting diagnostic detail in full motion. Once acquired each image can be viewed, and analyzed individually using the exiting toolsets in your PACS system.
WHY CHOOSE DDR?
This revolutionary technology changes the way you diagnose patients, providing valuable diagnostic information quickly and efficiently.
- Capture both motion and static X-rays in one system
- Visualize spinal biomechanics during flexion, extension, and movement
- Enhances diagnosis of instability, alignment, and dynamic dysfunction
- Improve patient engagement with dynamic, visual explanations
- Streamlined workflow designed specifically for chiropractic practices
- Includes our 17x17 MOMENTUM DR Panel, manufactured by Konica Minolta
Meet the system:

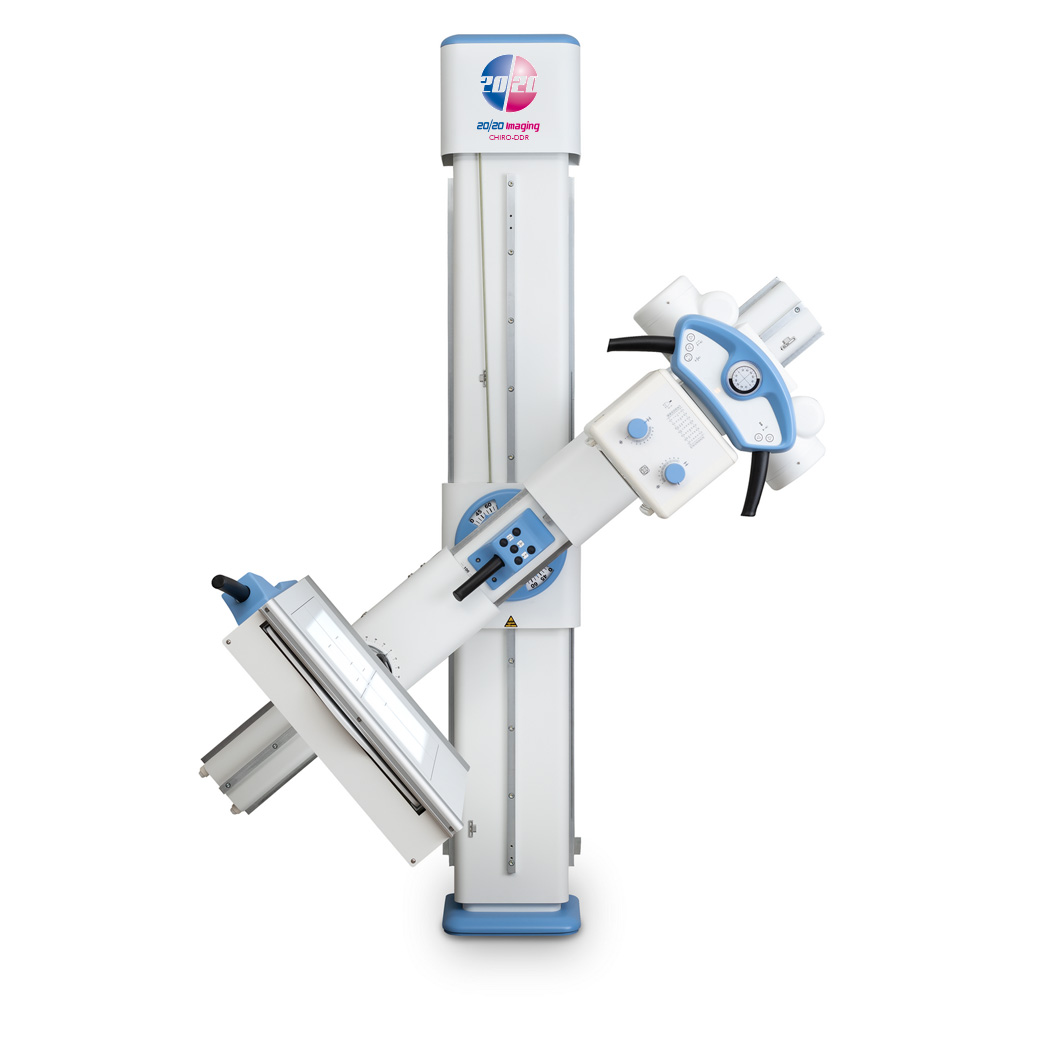

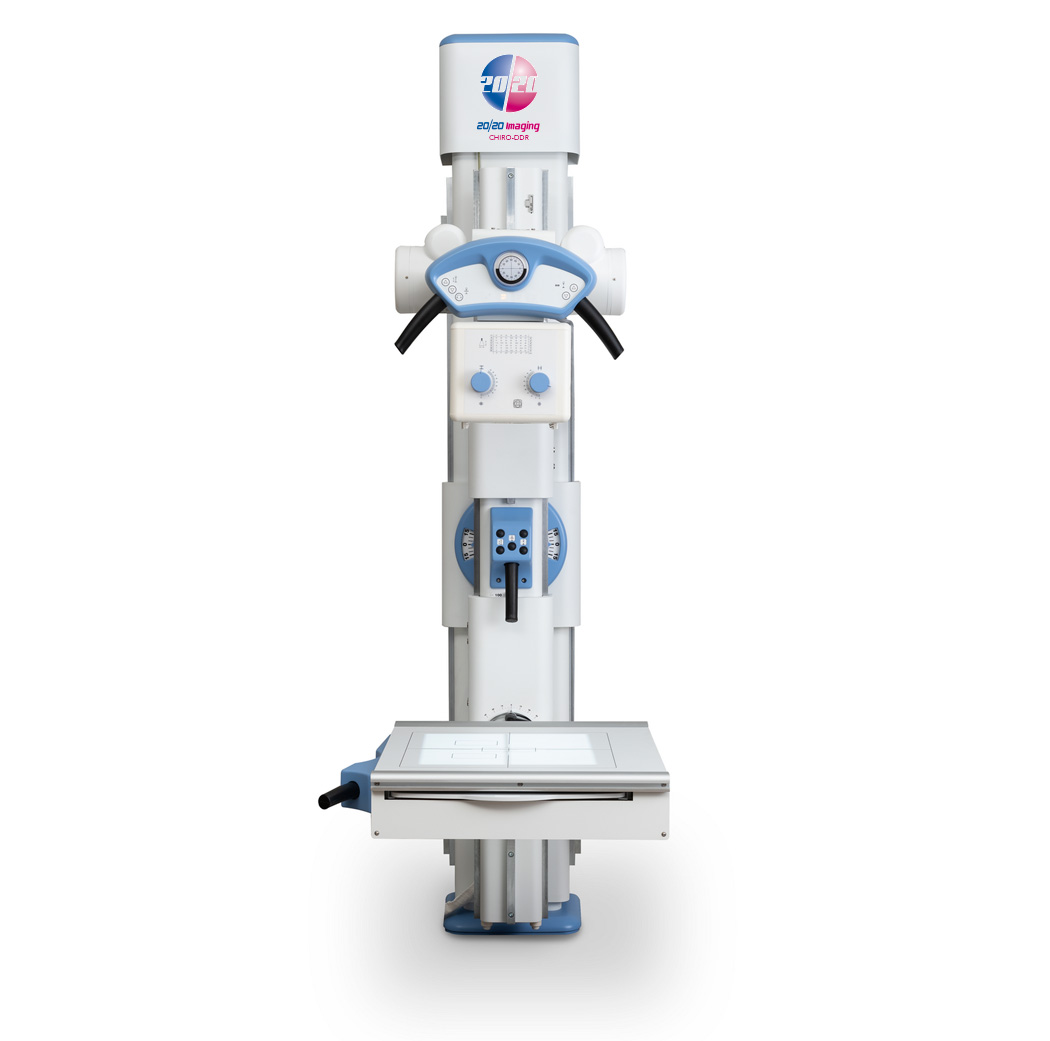

Chiropractic Straight Arm (CSA) System
- Motorized Variable SID
- Floor Mount 8’ Foot 9” ceiling
- H.T. Cables
- Two Knob Manual Collimator
- X-Ray Generator Options: 32kw, 40kw, 50kw single phase & three phase
- X-Ray Tube: E7884X 150Kvp 300,000 HU 0.6-1.2mm FS
Momentum-DR 17x17 Detector
The Momentum-DR uses a capacitor power system for quick recharges and zero battery swaps, keeping workflow uninterrupted. With cesium technology and REALISM™ image processing, it delivers sharp, high-contrast images in a lightweight, durable design made for chiropractic care.
- Cassette Sized Flat Panel
- Fixed Tethered Interface
- 17”x17” Imaging Area
- 100 µm
- 5 lp/mm
- AD conv. 16-bit
Ultra Chiro Acquisition Interface
- Automatic setting of acquisition parameters according to body part and system specific programmable APRs(Anatomically Programmed Radiography)
- One console operation - generator parameters setting by the workstation as part of APR
- Patient data entry, manually or automatically from the DICOM worklist (MWL optional)
- Urgent patient registration
- Preview image typically within 4-5 seconds after exposure
- Exam specific image processing for optimized image quality
- Automatic backup of operator accepted images
Symmetry-Sync Software
↑ Multi-functional Studylist
- Cybersecurity features
- Customizable Workflow & Interface
- Full PACS Functionalities included
- View from anywhere, anytime*
← Diagnostic Client DICOM Image Viewer
- User friendly & Easy to Use
- Full Clinical Toolset included
- Customizable toolbox for your favorite tools
← Zero-footprint Web DICOM Image Viewer
- Utilize any web browser
- Requires no installation, runs through browser
- Customizable tools & layouts
PC Hardware
Business Class Components†
Small Form Factor All-in-One PC
- Intel Processor, 32GB RAM
- Dual 2TB NVMe (Mirrored) Storage
- Wi-Fi 6E + Dual Ethernet
24" LED IPS 2MP Touchscreen Monitor
- 10-point Touchscreen
- High Quality Display for optimized viewing
- VESA Wall-mount compatible
Included Chiropractic Tool-Set
- Advanced Orthogonal Analysis
- Gonstead measurements
- Upper Cervical Analysis
- George’s Lines
- Ilium Analysis
- Line Drawing
- Measuring
- Angles (Regular, Cobb)
- Cervical Curve
- Lumbar Curve
- Orthospinology
- Full Spine Stitching
- Spine Labeling *DC Tools-Set Included
DDR—In-Motion X-Ray
- Dynamic motion visualization that reveals spine and joint biomechanics in near real time
- Low-dose imaging with rapid exposures—DDR is not fluoroscopy
- Identifies functional abnormalities that static X-rays can miss
- Enhances diagnostic accuracy and supports better treatment planning
- Improves patient communication with easy-to-understand motion studies
- Increases workflow efficiency with fast exams and seamless integration
On-Site Install & Training
- System setup by professional 20/20 certified installer
- Full training for both doctors and x-ray techs
- Monitoring by tech to ensure entire trained staff is completely comfortable
Warranty
- CSA Chiro DDR System: Contact sales for details
- Experienced live technician support after installation
